EDL8192-637FC

Edmund 10GigE interface industrial line scan camera. It supports conventional ISP functions, supports bright/dark field correction, supports lens shadow, distortion correction, light source uniformity correction, etc.; Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission; Support wide working voltage, low power consumption design; The software is compatible with GigE Vision, GenlCam protocol, etc.

Performance	Parameters
Sensor Type	CMOS Global Shutter
Pixel Size	7um
Resolution	8192×6
Imaging mode	Support 3line, 2-TDI
Max Line Rate	8192×3 37Khz 、8192×6 20Khz
HDR	65dB
SNR	42dB
Gain	1x-32x
Exposure Time	3μs~40ms
Shutter Mode	Support manual exposure, one-key exposure; support fixed exposure time, pulse width control exposure time
Mono/Color	Color
Pixel Formats	RGB24, RGB48, MONO8, MONO16
Bit Depth	10bit
Binning	Bin2, Bin4, SUM2, SUM4
ROI	Support
Image Reverse	Horizontal Reverse
Trigger Mode	Hardware Trigger、Software Trigger
External Trigger Mode	Row Trigger, Frame Trigger, Row + Frame Trigger
Number of return lines	Commit by line/frame timeout
Frame Buffer	8Gb
User storage capacity	4K
Line frequency control	Maximum free mode, internal software configuration cycle, encoder, external pulse frequency
Frame Trigger Activation	Software startup, frame triggering
Basic ISP Function	FPN correction, light and dark field correction, look-up table, multi-group lens distortion correction, light source correction
Advanced ISP Functions	White balance, color temperature correction, color matrix, noise reduction, SCS spatial color overlay
Data Interface	10GigE fiber optic interface
Trigger Interface	12Pin circular connector (see Interface Definition 1 for details)
Power supply	9~26V DC
Typical Power Consumption	<5W
Lens Interface	M72*0.75, 12mm behind the flange; can be adapted to F-Mount lenses through the adapter ring
Filter	380nm-650nm bandpass filtering
External Dimensions	78mm×78mm×59.4mm
Weight	456g
IP Rating	IP40 (with lens and cable installed correctly)
Working Temperature	Working temperature -10℃ ~ 50℃, storage temperature -30℃ ~ 70℃
Humidity	20% ~ 80%RH non-condensing
Software	SDK Software Package
Operating System	Windows XP/7/10 32/64bits, PC Linux 32/64bits, ARM Linux
Protocols/Standards	GigE Vision，GenICam，OpenCV，LabVIEW，Halcon
Certifications	CE, RoHS compliant
Performance	Parameters

Key Features

Adopt optical fiber transmission: distance >300m strong anti-interference ability
7um large pixel, 65dB high dynamic range, better image effect.
Support conventional ISP function, support color 2-line TDI.
Support bright/dark field correction, lens shadow light source uniformity correction, etc.
Built-in 8G large-capacity frame buffer, safe and reliable verification and repair technology, to ensure transmission
Universal GigE Vision, GenICam protocol, seamless switching from Gigabit to 10Gbps.
Low power consumption and fan less design, more stable and long-lasting work.
Software compatible with OpenCV, LabVIEW, Halcon, etc.
Dimension: 78mm×78mm×59.4mm

EDL8192-637FC

Key Features

Dimension Drawing

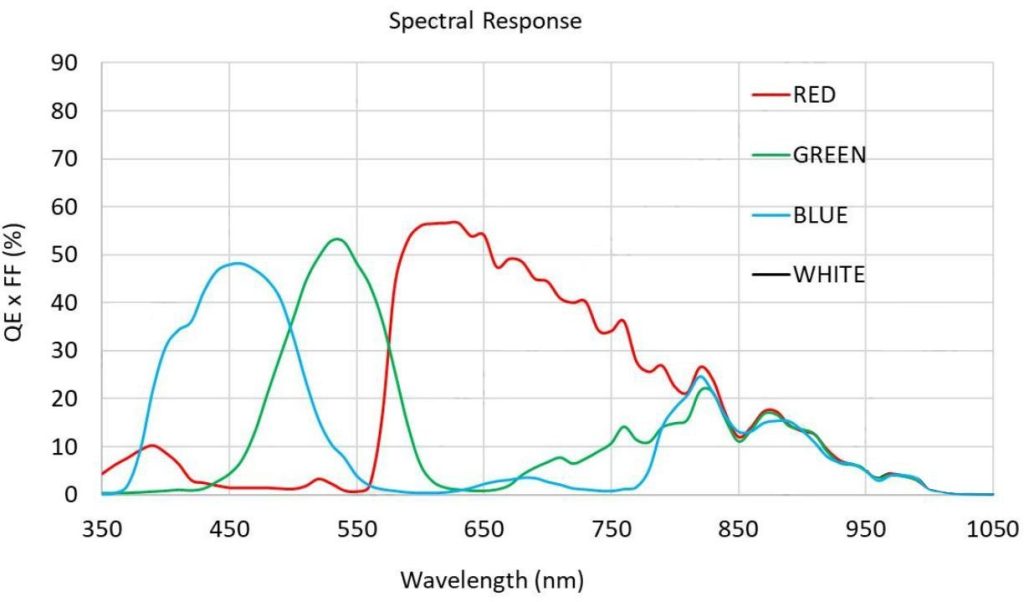

Spectral Response
