EDL4096-410GC
Edmund GigE interface industrial line scan camera. It supports conventional ISP functions, supports bright/dark field correction, supports lens shadow, distortion correction, light source uniformity correction, etc.; Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission; Support wide working voltage, low power consumption design; The software is compatible with GigE Vision, GenlCam protocol, etc.
| Performance | Parameters |
|---|---|
| Sensor Type | CMOS,Global Shutter |
| Resolution | 4096× 3 |
| Pixel Size | 7.0μm× 7.0μm |
| Sensor Optical Size | 28.672mm |
| Mono/Color | Color |
| Imaging Mode | 3Line |
| Maximum Line Rate | Burst mode: 40K ； continuous mode: 10K |
| Data Rate | 122.88MB/S |
| Dynamic Range | 65dB |
| Gain | 1x-16x, 0.125x adjustable step |
| Exposure Time | 6.6us-40ms, 1us step |
| Exposure Mode | Support manual exposure/single exposure/automatic exposure/pulse width control exposure |
| Output Image Format | RGB24、BGR24、BayerGR8、BayerRG8 |
| Pixel Merge | Not Supported |
| Mirror Image | Horizontal mirroring support |
| Trigger signal source | Internal trigger, external trigger |
| External Trigger Mode | Line trigger, frame trigger, line+frame trigger |
| Line Rate Control | Internal software configuration of cycles, encoder, external pulse frequency |
| Image Buffer | 4Gbit |
| ISP Function | FPN correction / Light and dark field correction / Look-up table / Gamma / Multi-group lens distortion correction / Light source correction / Spatial correction / White balance / Contrast / Black level |
| Electrical Characteristics | |
| Data Interface | GigE |
| I/O Interface | ▪ 1-way frame signal input (optocoupler isolated) ▪ 2-way line signal input (AB phase) ▪ 1 way flash output (opto-coupler isolated) ▪ 1-way general-purpose output (opto-coupler isolated) |
| Power supply | DC power supply through trigger interface, input range 12V-24V (± 10%); without POE |
| Typical Power Consumption | 3.0W @12V |
| Structure and environmental parameters | |
| Lens Interface | M42*1.0, flange back focus 12mm, can be adapted to F-Mount, C-Mount and other threaded lenses through the adapter ring. |
| IO and Power Interface | 12 pin industrial circular connector |
| Filter | 380nm-650nm bandpass filtering |
| Dimension | 59mm× 59.0mm× 33.5mm |
| Weight | Approx. 211g |
| IP Protection Rating | IP40 (with lens and cable properly installed) |
| Temperature | Operating Temperature: -10℃ ~ 50℃ Storage Temperature: -20℃ ~ 70 |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software and Protocols | |
| Software | SDK development kit, and associated demo/calibration software DemoCam3 |
| Operating Systems | Windows7/10 32/64bit； PC Linux 32/64bit |
| Protocols/Standards | GigVision， GenICam |
| Compatible Software | support MVS |
| Certifications | CE， RoHS |
| Performance | Parameters |
Key Features
- 4K pixels, 7um Pixel, 3C true color, high sensitivity, low noise
- Support bright/dark field correction, lens shadow correction, light source uniformity correction, spatial correction
- Supports writing and storing multiple sets of lens distortion correction parameters.
- Built-in large-capacity frame buffer, safe and reliable calibration and repair technology to ensure reliable transmission
- Support GenICam software interface
- Low power consumption, low temperature rise, low thermal noise
- Dimension: 59mm×59mm×33.5mm

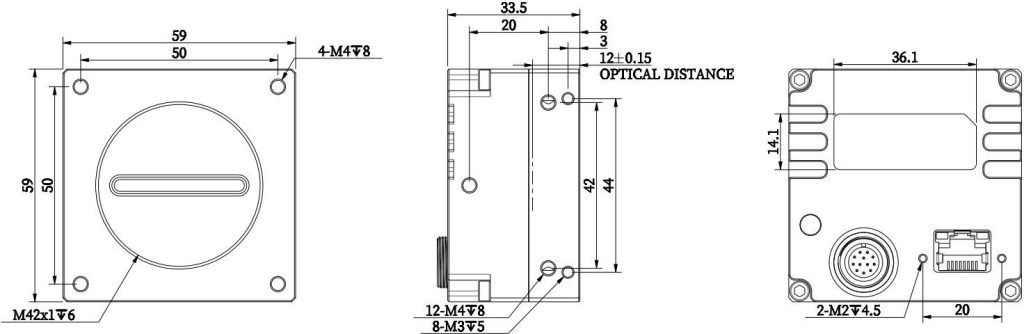

Dimension Drawing

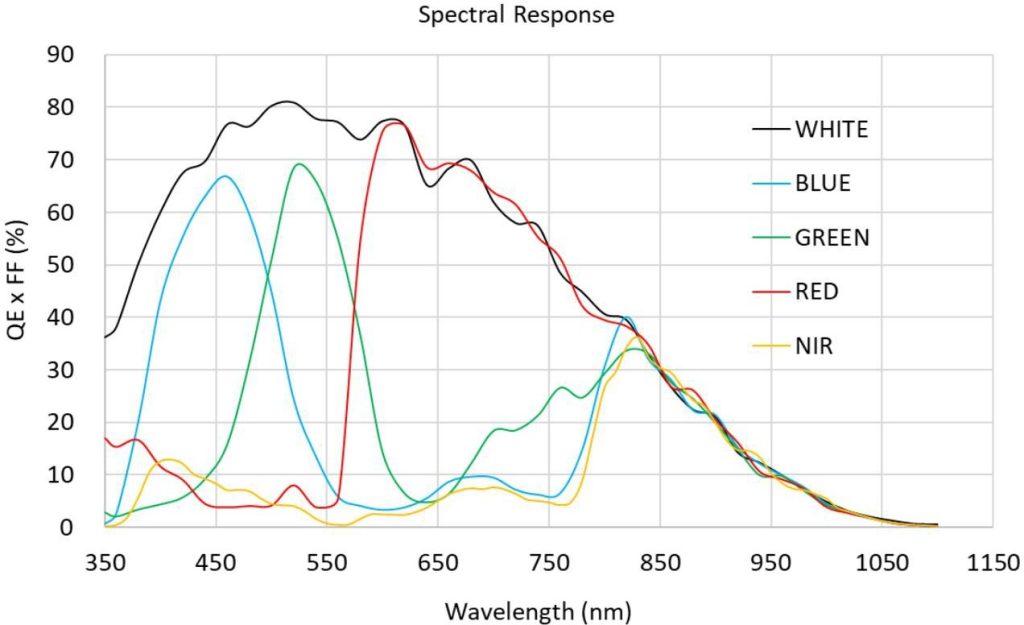

Spectral Response
