EDL16384-257FM
Edmund 10GigE interface industrial line scan camera. It supports conventional ISP functions, supports bright/dark field correction, supports lens shadow, distortion correction, light source uniformity correction, etc.; Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission; Support wide working voltage, low power consumption design; The software is compatible with GigE Vision, GenlCam protocol, etc.
| Performance | Parameters |
|---|---|
| Resolution | 16384×1, 16384×2 |
| Max Line Rate | 16384×1 57Khz 8bit(Normal)、16384×2 28Khz 8bit（2TDI） |
| Imaging Mode | 1line, 2-TDI |
| Pixel Size | 3.5um |
| Bit Depth | 10bit |
| Color/Mono | Mono |
| Filters | Transmission Enhancement Filters |
| Pixel Formats | MONO8, MONO16, RAW8, RAW16 |
| Gain | 1×~64× |
| Exposure Time | 3us-40ms |
| Shutter Mode | Support manual exposure, one-key exposure; support fixed exposure time, pulse width control exposure time |
| Binning | Support Bin2, sum2, sum4 |
| ROI | Support |
| Image Reverse | Horizontal Reverse |
| Trigger Mode | Hardware Trigger、Software Trigger |
| External Trigger Mode | Line Trigger, Frame Trigger, Line+Frame Trigger |
| Frame-triggered startup | Software startup, frame triggering |
| ISP | FPN Correction, Bright and Dark Field Correction, LUT, Light Source Correction, Noise Reduction, TDI |
| HDR | 65db |
| Frame Cache | 8G |
| User storage capacity | 4KByte |
| Number of return lines | Commit by line, frame timeout commit |
| Line Rate Control | Maximum free mode, internal software configurable period, encoder, external pulse frequency |
| Multi-Field | Supports 1/2/3/4 lamps, time-sharing strobe mode |
| working environment | Operating temperature : -10℃-50℃, Operating humidity : 20%-80% (non-condensing) |
| Power Supply | DC 9-26V |
| Power Consumption | <5W |
| Data Interface | SFP optical module interface (10Gb Ethernet port) |
| Trigger Interface | 12Pin circular connector (power supply, 3 inputs, 2 outputs/4 outputs) |
| Software | SDK software package |
| OS | Windows XP/7/10 32/64bits, PC Linux 32/64bits, ARM Linux |
| Protocols/standards | Supports GigE Vision，GenICam，OpenCV，LabVIEW，Halcon |
| Dimension | 78mm×78mm×59.4mm |
| Weight | 456g |
| Lens Mounts | M72*0.75, flange back focus 12 mm; can be adapted to F-Mount lenses via adapter ring |
| protection class | IP40 (with lens and cable installed correctly) |
| Conformity | CE, RoHS compliant |
| Performance | Parameters |
Key Features
- Max Line Rate : 57Khz, 3.5um pixel size
- Mono, 2-TDI
- Support 1/2/3/4 lights Multi-Field
- Fiber optic interface, cable lengths >300m
- 8G frame buffer
- Power supply: 9-26V DC, low power consumption
- Support GigE Vision, GenICam, Halcon, LabVIEW, OpenCV
- Dimension: 78mm×78mm×50mm

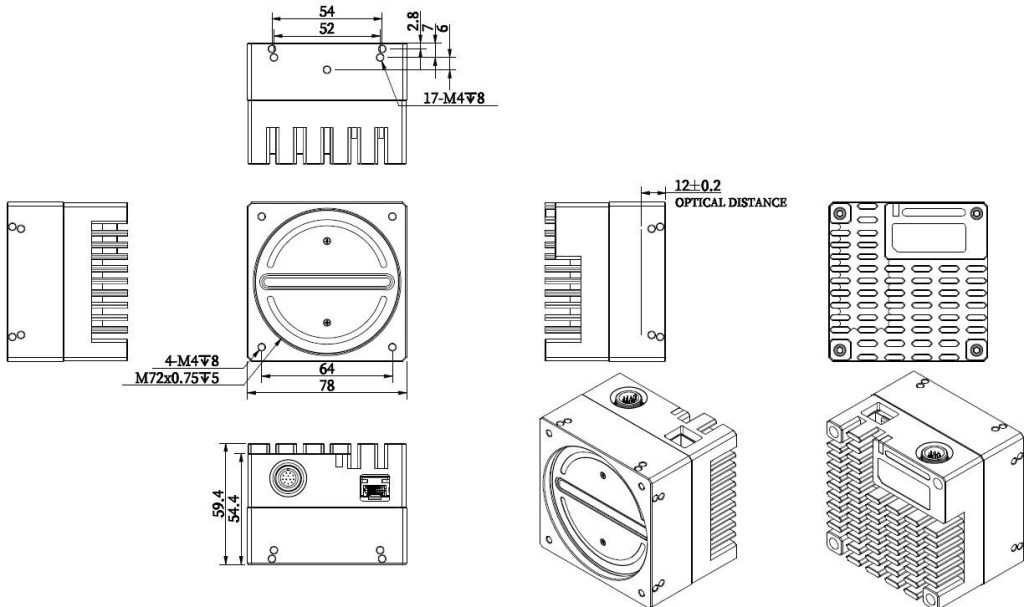

Dimension Drawing

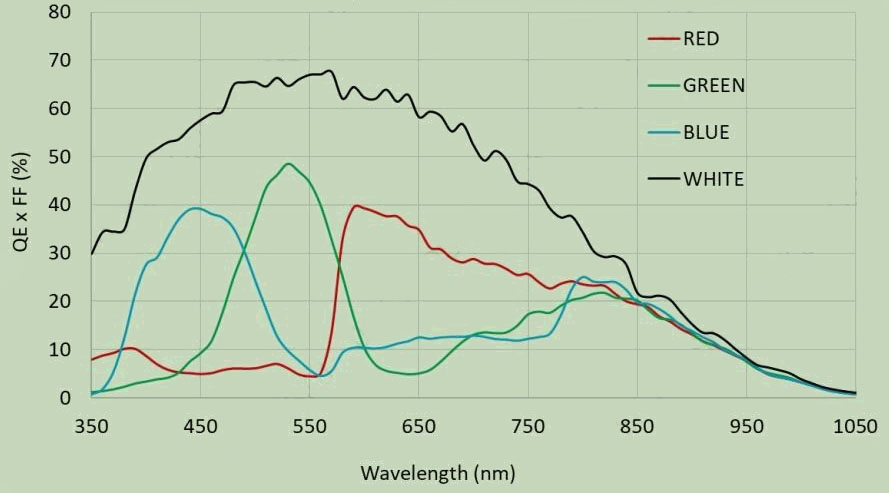

Spectral Response
