EDL16384-223FC

Edmund 10GigE interface industrial line scan camera. It supports conventional ISP functions, supports bright/dark field correction, supports lens shadow, distortion correction, light source uniformity correction, etc.; Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission; Support wide working voltage, low power consumption design; The software is compatible with GigE Vision, GenlCam protocol, etc.

Parameter	Value
Sensor Type	CMOS, Global Shutter
Resolution	16384×2
Pixel Size	3.5um
Sensor Optical Size	57.34mm
Mono/Color	Color
Imaging Mode	1 Line
Max. Line Rate	Sudden mode: 33K/BGR8/RGB8/MONO8/BAYER8/YUV422 - Continuous mode:23K/BGR8/RGB8, 33K/MONO8/BAYER8/YUV422
Data rate	1546MB/s
Dynamic Range	65dB
Gain Range	1×-16×, Step 0.1x
Exposure Time	4.2us-40ms, Step 0.1us
Exposure mode	Support manual exposure/one-key exposure/fixed exposure time/pulse width control exposure
Output Image Format	Bayer8, BGR8, RGB8, Mono8, YUV422
Pixel Merge	Support 1× 1, 1× 2, 1× 4, 2× 1, 2× 2, 2× 4, 4× 1, 4× 2, 4× 4
Mirror Image	Horizontal mirroring, vertical mirroring
Trigger Signal Source	Internal trigger, external trigger
External Trigger Mode	Line trigger, frame trigger, line+frame trigger
Line Rate Control	Software settings (internal trigger); external encoder input; camera internal frequency multiplication/division
Image Buffer	8Gbit
ISP Function	FPN correction, light and dark field correction, lookup table, light source correction, white balance, color temperature correction, color matrix, noise reduction, SCS space color overlay
Electrical Characteristics
Data Interface	Fiber Optic 10GigE
I/O Interface	1 frame signal input, 2 line signal inputs, 4 single-ended outputs, configurable as 2 differential outputs
Power supply	DC 12V-24V（±10%）
Typical Power Consumption	<5W @24V
Structure and Environmental Parameters
Lens Interface	M72×0.75, flange back focus 12 mm
IO and Power Interface	12-Pin industrial circular connector
Filter	380nm-650nm Bandpass Filter
Overall Dimension	78mm×78mm×60.1mm
Weight	456g
IP Protection Rating	IP40 (with lens and cable properly installed)
Temperature	Operating Temperature:- 10℃ ~ 50℃, Storage Temperature: -20℃ ~ 70℃
Humidity	5% ~ 90%RH (non-condensing)
Software and Protocols
Software	SDK development kit, and associated demo/calibration software DemoCam3
Protocols/Standards	Support GigE Vision，GenICam，OpenCV，LabVIEW，Halcon
Compatible Software	Support third-party software such as Halcon and LabVIEW (need to match third-party network card)
Certifications	CE, RoHS
Parameter	Value

Key Features

Line frequency gear: finely adjust the magnification between the input pulse signal and the camera frequency
Flexible matching of external encoder or pulse signal with camera line frequency
Supports ISP functions such as bright/dark field correction, lookup table, noise reduction, FPN correction, etc.
Built-in 8G large-capacity frame buffer, safe and reliable verification and repair technology, to ensure reliable transmission
5W ultra-low power consumption design reduces camera heat generation, lower camera temperature rise and less thermal noise
12-24V wide power supply range, low power consumption design, compatible with more equipment internal power supply systems
10Gbps bandwidth optical fiber long-distance transmission, good anti-interference performance
Support GigE Vision, GenICam protocol
Software compatible with third-party software such as Halcon and LabVIEW
Dimensions: 78mm×78mm×60.1mm

EDL16384-223FC

Key Features

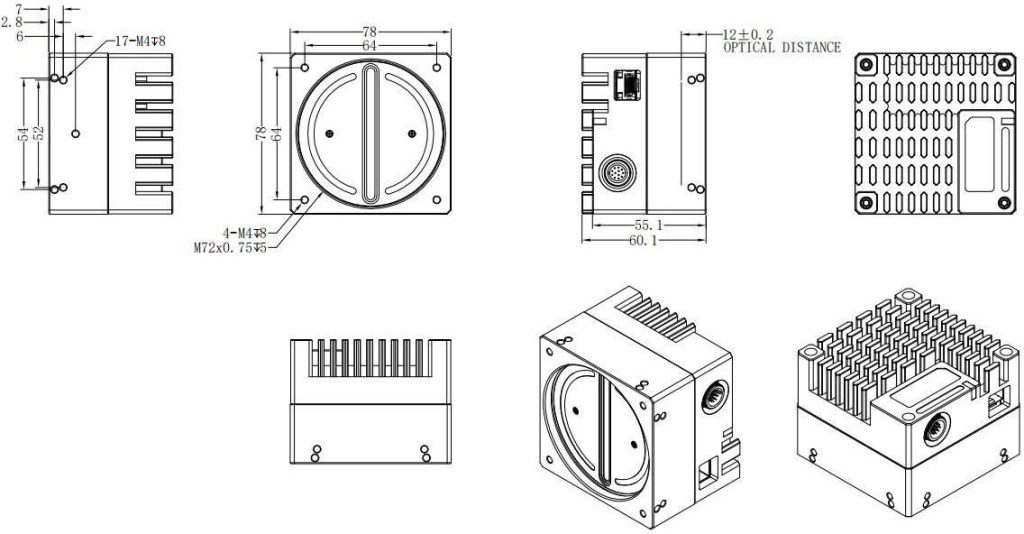

Dimension Drawing

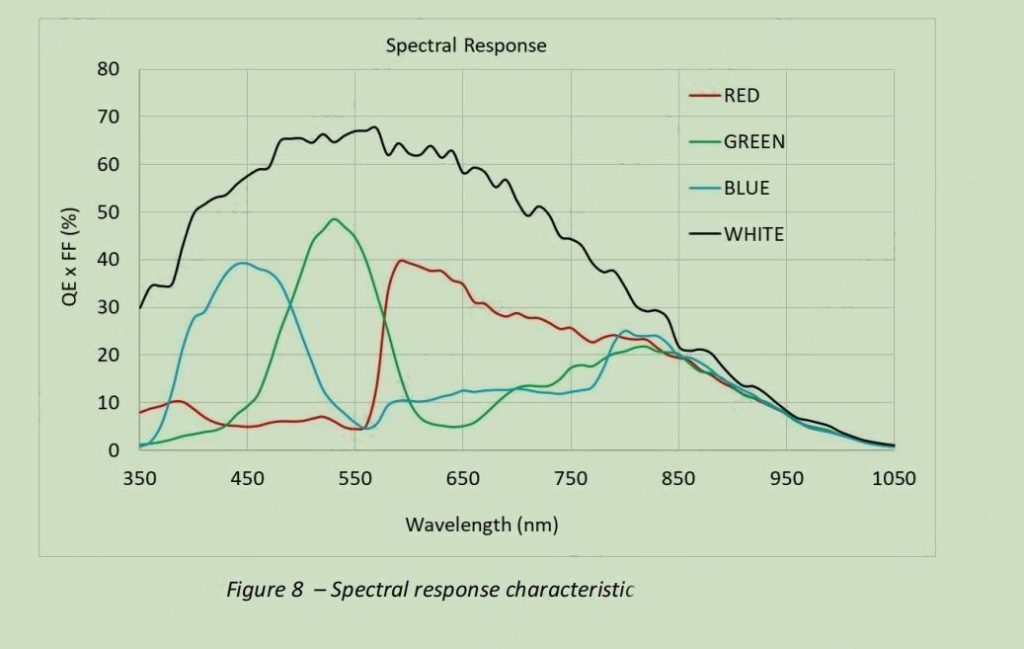

Spectral Response
