M2A2446-85UM
M2A2446-85UM is one of the M2A-U series USB3.0 industrial area scan cameras independently developed and designed by ZDS. Its feature is Small size, 46g ultra-light weight, Industry General Fixi, Support USB3.0, Maximum speed up to 440MByte/s, Built-in large-capacity. Frame buffer built-in, Real time transmission is stable and reliable. Strong stability Ultra low power consumption, Typical power consumption is less than 2.4W. Support third-party vision development software, developed based on USB3.0 and GenICam, compatible with HALCON, LabView, etc. Camera Hardware Graphics Accelerator, Image preprocessing.
| wdt_ID | Parameter | Value |
|---|---|---|
| 562 | Performance Parameters | |
| 563 | Sensor Type | CMOS Global Shutter |
| 564 | Resolution | 2448×2048 |
| 565 | Optical Size | 2/3", 11.3mm diagonal |
| 566 | Pixel Size | 3.4um×3.4um |
| 567 | Mono/Color | Color |
| 568 | Max Frame Rate | 24FPS@2448×2048 MONO8 |
| 569 | Dynamic Range | 67.6dB |
| 570 | Gain | 1x~16x (1x~ 5xstep: 0.25x, 6x~16x step: 1x) |
| 571 | Exposure Time | 1us-10s，step：1us |
| 572 | Exposure mode | Support Auto Exposure/Manual Exposure/Single Exposure |
| 573 | Pixel Formats | Mono8/B8_G8_R8/RGB24/BGR24 |
| 574 | Pixel Merge | - |
| 575 | Trigger Mode | Hardware Trigger, Software Trigger |
| 576 | Image Cache | 1Gbit |
| 577 | ISP | Contrast, LUT, Gamma, Noise Reduction, Horizontal and Vertical Mirroring support |
| 578 | Electrical Characteristics | |
| 579 | Data Interface | 1000Mbps network port, RJ45 connector with fixing screw holes |
| 580 | I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| 581 | Power supply | POE power supply or DC 12-24V (±10%) power supply |
| 582 | Typical Power Consumption | 2.2W@24VDC |
| 583 | Structure and environmental parameters | |
| 584 | Lens Interface | C-Mount, optical back focus 17.5mm |
| 585 | IO and Power Interface | 6 pole industrial circular connector |
| 586 | Filter | 380nm-650nm bandpass filter |
| 587 | Dimension | 29mm x 29mm x 31.5mm (lens connector not included) |
| 588 | Weight | Approx. 53g |
| 589 | IP Protection Rating | IP40 (with lens and cables properly installed) |
| 590 | Operating Temperature | -10℃~ 50℃ |
| 591 | Storage Temperature | -20℃~ 70 |
| 592 | Humidity | 5% ~ 90%RH (non-condensing) |
| 593 | Software and Protocols | |
| 594 | Software | SDK development kit, and associated demo/calibration software |
| 595 | Operating Systems | Windows7/10 32/64bit；PC Linux 32/64bit |
| 596 | Protocols/Standards | GigE Vision V1.2，GenICam |
| 597 | Compatible Software | NI MAX，Halcon，VisionPro，MV Viewer，MVS |
| 598 | Certifications | CE，RoHS |
Key Features
- 5MP, color
- Small size, 46g ultra-light weight, industry-universal fixing holes
- Compliant with USB3.0 SuperSpeed communication protocol, maximum speed up to 440MByte/s
- Built-in large-capacity frame buffer, real-time transmission is stable and reliable
- Super low power consumption and high stability
- Support USB3.0Vision, GenICam Protocol
- Compatible with LabView, Halcon, MV Viewer, MVS, etc.
- Camera hardware graphics accelerator to achieve image pre-processing
- External dimensions: 29mm×29mm×29mm

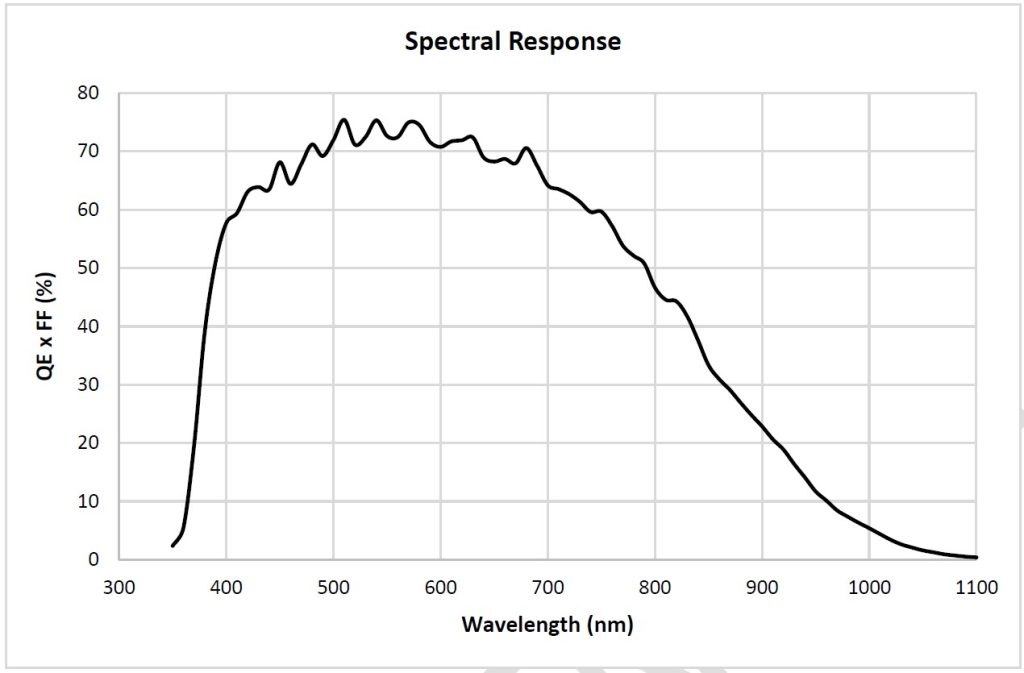

Spectral response
Dimension (unit: mm)
