M2A2048-170UC
M2A2048-170UC is one of the M2A-U series USB3.0 industrial area scan cameras independently developed and designed by ZDS. Its feature is Small size, 44g ultra-light weight, Industry General Fixi, Support USB3.0, Maximum speed up to 440MByte/s, Built-in large-capacity. Frame buffer built-in, Real time transmission is stable and reliable. Strong stability Ultra low power consumption, Typical power consumption is less than 2W. Support third-party vision development software, developed based on USB3.0 and GenICam, compatible with HALCON, LabView, etc. Camera Hardware Graphics Accelerator, Image preprocessing.
| Parameter | Value |
|---|---|
| Resolution | 2048×1200 |
| Shutter Technology | Global |
| Pixel Size | 4.0μm×4.0μm |
| Max Frame Rate | 170FPS |
| Mono/Color | Color |
| Sensor Size | 1/1.7" diagonal 9.5mm |
| Trigger | Software/Hardware Trigger |
| Dynamic Range | 68.5db |
| Spectral | 390nm-650nm |
| Exposure Time | 3μs~10sec，Step 1μs |
| Gain Range | 1.2x～15.5x ，Step 0.2 |
| Image Format | BGR24, RGB24, RAW8/16, Mono8/16 |
| Photo Support Format | RAW BMP JPEG PNG |
| ISP | Contrast, LUT, Gamma, Black Level, Noise Reduction, Sharpness, Flat Field, Horizontal, Vertical Mirror Output Supported |
| IO | 6 pole industrial circular connector, provides 1 optoisolated trigger input (Line1), 1 optoisolated flash output (Line2) |
| Power Supply | USB 5V |
| Power Consumption | 1.9W@5.0V |
| Interface | USB3.0 |
| Dimention | 29mm×29mm×29mm |
| Work Temperature | -10℃ - 50℃ |
| Weight | 44.1g |
| Lens Mount | C |
| IP Protection | IP40 |
| Compatibility | USB3.0 Vision, GenlCam, HALCON, LabView, OpenCV |
| Certification | CE, FCC, RoHS |
Key Features
- 2.4MP, color
- Small size, 46g ultra-light weight, industry-universal fixing holes
- Compliant with USB3.0 SuperSpeed communication protocol, maximum speed up to 440MByte/s
- Built-in large-capacity frame buffer, real-time transmission is stable and reliable
- Super low power consumption and high stability
- Support USB3.0Vision, GenICam Protocol
- Compatible with LabView, Halcon, MV Viewer, MVS, etc.
- Camera hardware graphics accelerator to achieve image pre-processing
- External dimensions: 29mm×29mm×29mm

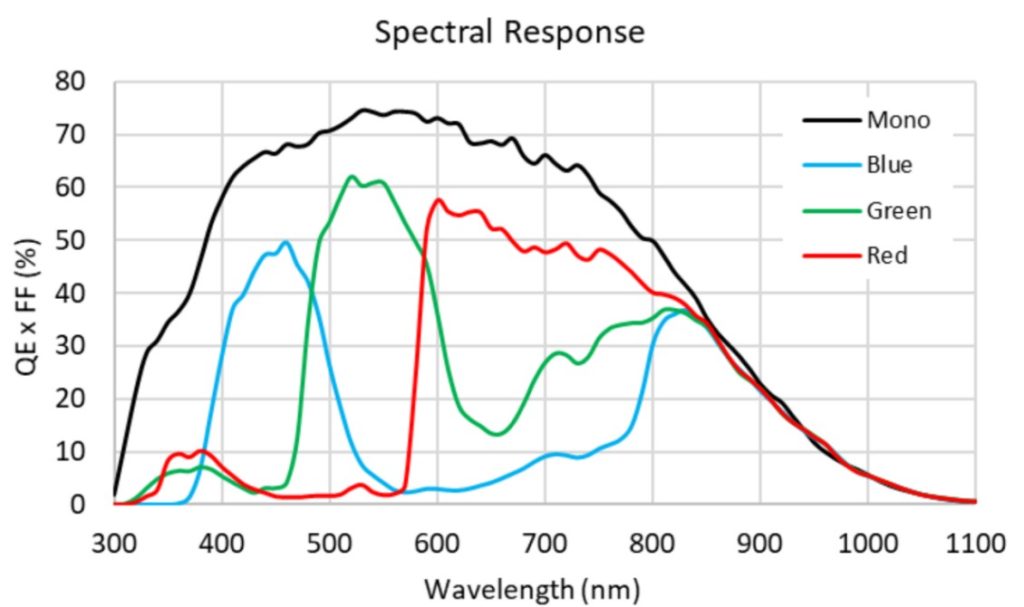

Spectral response
Dimension (unit: mm)
