M2A4095-31UM
M2A4095-31UM is one of the M2A-U series USB3.0 industrial area scan cameras independently developed and designed by ZDS. Its feature is Small size, ultra-light weight, Industry General Fixture, Support USB3.0, Maximum speed up to 440MByte/s, Built-in large-capacity. Frame buffer built-in, Real time transmission is stable and reliable. Strong stability Ultra low power consumption. Support third-party vision development software, developed based on USB3.0 and GenICam, compatible with HALCON, LabVIEW, etc. Camera Hardware Graphics Accelerator, Image preprocessing.
| Parameter | Value |
|---|---|
| Performance Parameters | |
| Sensor Type | CMOS,Global Shutter |
| Sensor | Gpixel GMAX3412 |
| Pixel Size | 3.4um×3.4um |
| Sensor Optical Size | 1.1', 17.4mm diagonal |
| Resolution | 4096×3072 |
| Mono/Colour | Mono |
| Max Frame Rate | 33.38FPS@4096×3072 normal |
| Dynamic Range | 67.6dB |
| Signal-to-Noise Ratio | 39.3dB |
| Gain | 1×~ 12×， Step 0.125x |
| Exposure Time | 54.3us - 10s,Step: 1us |
| Exposure Mode | Support auto exposure/manual exposure/single exposure |
| Pixel Formats | Mono8 / Mono12 / BGR24 / BAYER8/BAYER12 |
| Pixel Merge | Supports Sum2/Skip |
| Trigger Mode | Hardware trigger, software trigger |
| Image Buffer | 1Gbit Contrast, Gamma, Noise Reduction, Horizontal and Vertical |
| ISP | Mirror Support, Negative Processing Support |
| Electrical Characteristics | |
| Data Interface | USB3.0 interface, Micro USB3.0 connector with fixing screw holes |
| I/O Interface | 1 optocoupler input, 2 optocoupler outputs |
| Power supply | USB5V Power Supply |
| Typical Power Consumption | 3.23W@USB5V |
| Structure and environmental parameters | |
| Lens Interface | C Port |
| IO and Power Interface | 6 pole industrial circular connector |
| Filter | Full Band Transparency Enhancer |
| Overall Dimension | 29mm×29mm×42mm (lens connector not included) |
| Weight | Approx. 52g |
| IP Protection Rating | IP40 (with lens and cable properly installed) |
| Temperature | Operating Temperature: -10℃ ~ 50℃ - Storage Temperature: -20℃ ~ 70 |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software and Protocols | |
| Software | SDK development kit, and associated demo/calibration software DemoCam3 |
| Operating Systems | Windows7/10 32/64bit |
| Protocols/Standards | USB3.0 Vision, GenlCam |
| Compatible Software | LabVIEW，Halcon，MV Viewer，MVS，ebus ,VM |
| Certifications | CE， RoHS |
| Parameter | Value |
Key Features
- 12.5MP, Mono
- Small footprint, ultra-light weight, industry-universal fixing holes
- Conforms to USB3.0 SuperSpeed communication protocol, maximum speed up to 440MByte/s
- Built-in large-capacity frame buffer, real-time transmission is stable and reliable
- Ultra-low power consumption and high stability
- Support USB3.0Vision, GenICam protocol
- Compatible with LabVIEW, Halcon, MV Viewer, MVS, eBUS, VM, etc.
- Camera hardware graphics accelerator to achieve image pre-processing
- Dimensions: 29mm×29mm×42mm

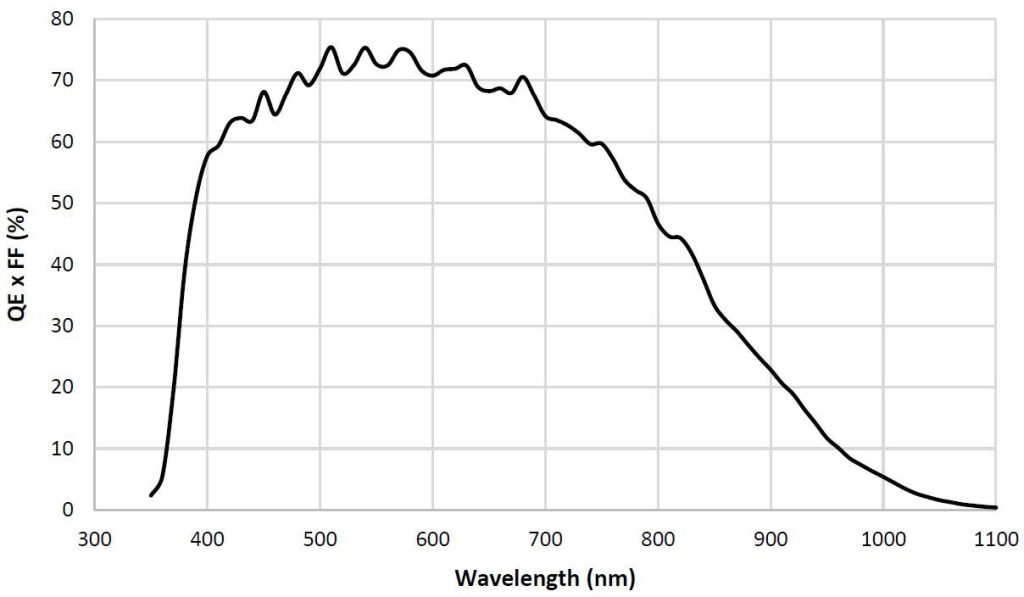

Spectral response
Dimension (unit: mm)
Interface Definition
| Pin | Color | Definition | Signal Source | Description | Isolated/non-isolated | Interface Circuit | Input/Output Parameters |
|---|---|---|---|---|---|---|---|
| 1 | Red | GPO+ | Line 3+ | General purpose output Positive | Isolated output | Optocoupler | Optocoupler current limit: 20mA with polarity |
| 2 | Green | TRIG+ | Line 1+ | TRIG input positive | Isolated input | Optocoupler | Low effective: 0-1V, High effective: 5-24V |
| 3 | White | TRIG- | Line 1- | TRIG input negative | Isolated input | Optocoupler | |
| 4 | Yellow | Flash_out+ | Line 2+ | Flash output positive | Isolated output | Optocoupler | Optocoupler current limit: 20mA with polarity |
| 5 | Brown | Flash_out- | Line 2- | Flash output negative | Isolated output | Optocoupler | |
| 6 | Black | GPO- | Line 3- | General purpose output negative | Isolated output | Optocoupler | |
| Transparent | shielding cable | Connecting the camera housing | Remarks: Transparent heat-shrinkable tubing for shielded wire cover | ||||
