M2A4095-9GM
M2A-G series is a new series of products upgraded on the basis of the structure of the first-generation MIA-G product series of ZDS, which further enhances the compatibility of the products. M2A-G series cameras are developed based on GigE Vision and are compatible with third-party machine vision development software. It is especially suitable for applications that have strict requirements on stability, compatibility, volume and cost performance.
| wdt_ID | Parameter | Value |
|---|---|---|
| 300 | Performance Parameters | |
| 301 | Sensor Type | CMOS Global Shutter |
| 302 | Resolution | 4096×3072 |
| 303 | Optical Size | 1.1", 17.4mm diagonal |
| 304 | Pixel Size | 3.4um×3.4um |
| 305 | Mono/Color | Mono |
| 306 | Max Frame Rate | 9.4FPS@4096×3072 MONO8 |
| 307 | Dynamic Range | 67.9dB |
| 308 | SNR | 39.5dB |
| 309 | Gain | 1×~ 16× (1×~ 5× step: 0.25x，6×~ 16× step: 1x) |
| 310 | Exposure Time | 1us - 10s，Step: 1us |
| 311 | Exposure mode | Support Auto Exposure/Manual Exposure/Single Exposure |
| 312 | Pixel Formats | Mono8 /Mono16 |
| 313 | Pixel Merge | SUM2/SUM4/BIN2/BIN4 |
| 314 | Trigger Mode | Hardware Trigger, Software Trigger |
| 315 | Image Cache | 1Gbit |
| 316 | ISP | Contrast, LUT, Gamma, Noise Reduction, Horizontal and Vertical Mirroring support |
| 317 | Electrical Characteristics | |
| 318 | Data Interface | 1000Mbps network port, RJ45 connector with fixing screw holes |
| 319 | I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| 320 | Power supply | DC 12-24V (±10%) power supply |
| 321 | Typical Power Consumption | 2.8W@12VDC |
| 322 | Structure and environmental parameters | |
| 323 | Lens Interface | C-Mount, optical back focus 17.5mm |
| 324 | IO and Power Interface | 6 pole industrial circular connector |
| 325 | Filter | Full-wavelength lens intensifier |
| 326 | Dimension | 29mm x 29mm x 39.4mm (lens connector not included) |
| 327 | Weight | Approx. 59g |
| 328 | IP Protection Rating | IP40 (with lens and cables properly installed) |
| 329 | Operating Temperature | -10℃~ 50℃ |
| 330 | Storage Temperature | -20℃~ 70 |
| 331 | Humidity | 5% ~ 90%RH (non-condensing) |
| 332 | Software and Protocols | |
| 333 | Software | SDK development kit, and associated demo/calibration software |
| 334 | Operating Systems | Windows7/10 32/64bit；PC Linux 32/64bit |
| 335 | Protocols/Standards | GigE Vision V1.2，GenICam |
| 336 | Compatible Software | NI MAX，Halcon，VisionPro，MV Viewer，MVS |
| 337 | Certifications | CE，RoHS |
Key Features
- Second-generation industrial camera, low power consumption
- A new generation of appearance structure design, higher Installation accuracy
- noise reduction, super palette, User-defined key and other rich functions.
- GigE interface, maximum transmission distance up to 100m (without relay)
- Support GigE Vision V1.2, GeniCam standard, seamlessly connect to third-party software
- Comply with CE, FCC, RoHS
- Dimension: 29 mm × 29 mm × 31.5 mm

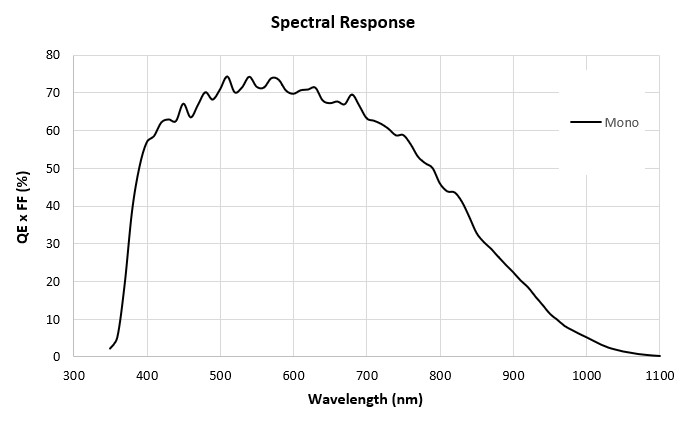

Spectral response

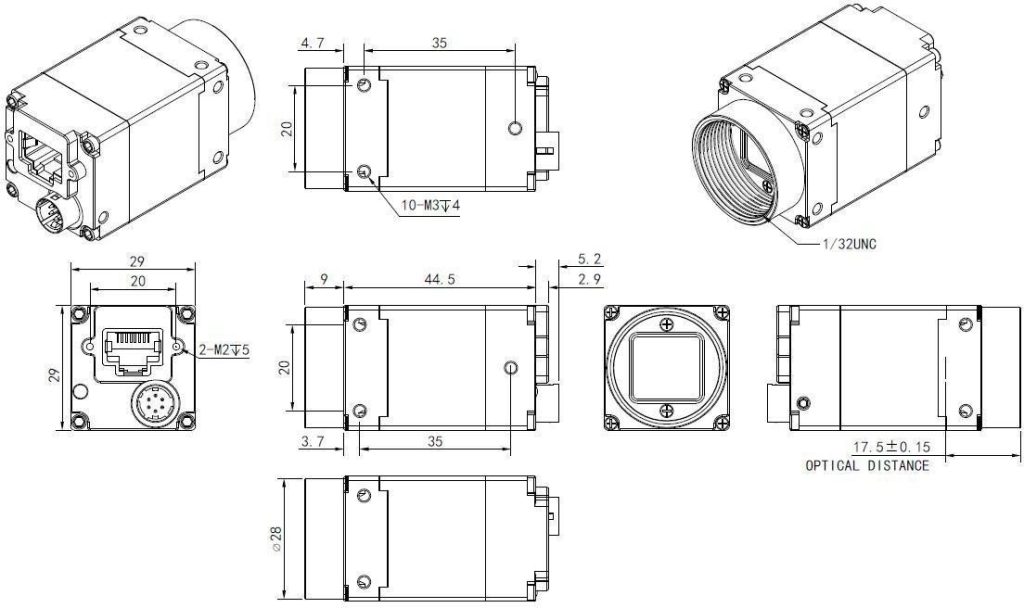

Dimension（Unit: mm）
