M2A2048-49GM
M2A-G series is a new series of products upgraded on the basis of the structure of the first-generation MIA-G product series of ZDS, which further enhances the compatibility of the products. M2A-G series cameras are developed based on GigE Vision and are compatible with third-party machine vision development software. It is especially suitable for applications that have strict requirements on stability, compatibility, volume and cost performance.
| wdt_ID | Parameter | Value |
|---|---|---|
| 448 | Performance Parameters | |
| 449 | Sensor Type | CMOS Global Shutter |
| 450 | Resolution | 2448×2048 |
| 451 | Optical Size | 2/3", 11.3mm diagonal |
| 452 | Pixel Size | 3.4um×3.4um |
| 453 | Mono/Color | Mono |
| 454 | Max Frame Rate | 24FPS@2448×2048 MONO8 |
| 455 | Dynamic Range | 67.6dB |
| 456 | SNR | 39.3dB |
| 457 | Gain | 1x~16x,step 0.1x |
| 458 | Exposure Time | 2us-10s,step:1us |
| 459 | Exposure mode | Support Auto Exposure/Manual Exposure/Single Exposure |
| 460 | Pixel Formats | Mono8/Mono16/RAW8/RAW12 |
| 461 | Pixel Merge | - |
| 462 | Trigger Mode | Hardware Trigger, Software Trigger |
| 463 | Image Cache | 1Gbit |
| 464 | ISP | Contrast, LUT, Gamma, Noise Reduction, Horizontal and Vertical Mirroring support |
| 465 | Electrical Characteristics | |
| 466 | Data Interface | 1000Mbps network port, RJ45 connector with fixing screw holes |
| 467 | I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| 468 | Power supply | POE power supply or DC 12-24V (±10%) power supply |
| 469 | Typical Power Consumption | 2.2W@24VDC |
| 470 | Structure and environmental parameters | |
| 471 | Lens Interface | C-Mount, optical back focus 17.5mm |
| 472 | IO and Power Interface | 6 pole industrial circular connector |
| 473 | Filter | Full Band Transparency Enhancer |
| 474 | Dimension | 29mm x 29mm x 31.5mm (lens connector not included) |
| 475 | Weight | Approx. 53g |
| 476 | IP Protection Rating | IP40 (with lens and cables properly installed) |
| 477 | Operating Temperature | -10℃~ 50℃ |
| 478 | Storage Temperature | -20℃~ 70 |
| 479 | Humidity | 5% ~ 90%RH (non-condensing) |
| 480 | Software and Protocols | |
| 481 | Software | SDK development kit, and associated demo/calibration software |
| 482 | Operating Systems | Windows7/10 32/64bit；PC Linux 32/64bit |
| 483 | Protocols/Standards | GigE Vision V1.2，GenICam |
| 484 | Compatible Software | NI MAX，Halcon，VisionPro，MV Viewer，MVS |
| 485 | Certifications | CE，RoHS |
Key Features
- Second-generation industrial camera, low power consumption
- A new generation of appearance structure design, higher Installation accuracy
- noise reduction, super palette, User-defined key and other rich functions.
- GigE interface, maximum transmission distance up to 100m (without relay)
- Support GigE Vision V1.2, GeniCam standard, seamlessly connect to third-party software
- Comply with CE, FCC, RoHS
- Dimension: 29 mm × 29 mm × 31.5 mm

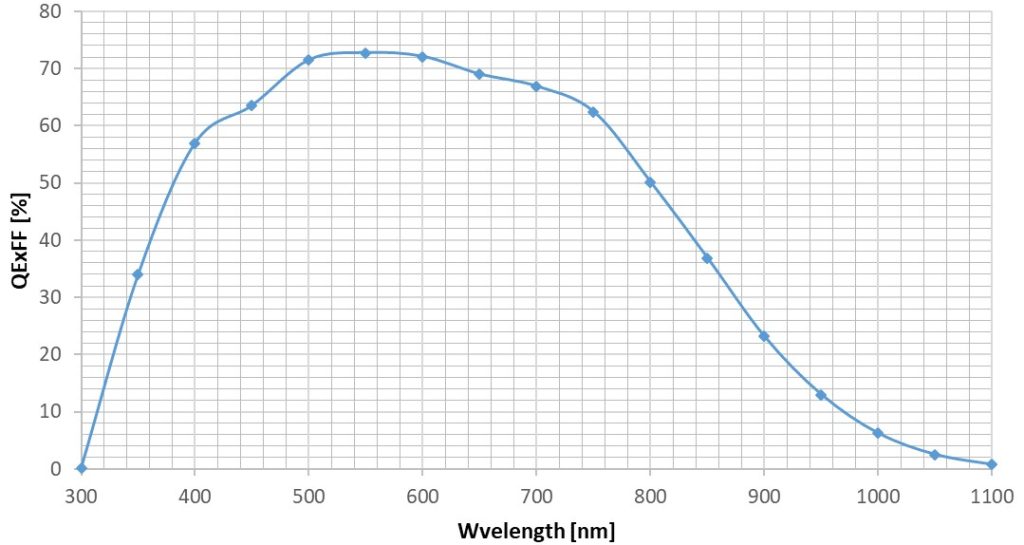

Spectral response
Dimension（Unit: mm）
