M2A2048-49GC
M2A-G series is a new series of products upgraded on the basis of the structure of the first-generation MIA-G product series of ZDS, which further enhances the compatibility of the products. M2A-G series cameras are developed based on GigE Vision and are compatible with third-party machine vision development software. It is especially suitable for applications that have strict requirements on stability, compatibility, volume and cost performance.
| Parameter | Value |
|---|---|
| Performance Parameters | |
| Sensor Type | CMOS Global Shutter |
| Resolution | 2048×1200 |
| Optical Size | 1/1.7" diagonal 9.5mm |
| Pixel Size | 4μm×4μm |
| Mono/Color | Color |
| Max Frame Rate | 49fps@2048x1200 |
| Dynamic Range | 68.5 dB |
| Gain | 1.2x～15.8x ；step 0.2 |
| Exposure Time | 1μs~10sec，step 1μs |
| Exposure mode | Support Auto Exposure/Manual Exposure/Single Exposure |
| Pixel Formats | BGR24、RGB24、RAW8/16、MONO8/16 |
| Pixel Merge | 2×2 Sum2,2×2 Binning |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Image Cache | 1Gbit |
| ISP | Contrast, LUT, Gamma, Noise Reduction, Horizontal and Vertical Mirroring support |
| Electrical Characteristics | |
| Data Interface | 1000Mbps network port, RJ45 connector with fixing screw holes |
| I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| Power supply | POE power supply or DC 12-24V (±10%) power supply |
| Typical Power Consumption | 2.1W@12VDC 2.5W@48V POE |
| Structure and environmental parameters | |
| Lens Interface | C-Mount, optical back focus 17.5mm |
| IO and Power Interface | 6 pole industrial circular connector |
| Filter | 380nm-650nm bandpass filter |
| Dimension | 29mm x 29mm x 31.5mm (lens connector not included) |
| Weight | Approx. 51.6g |
| IP Protection Rating | IP40 (with lens and cables properly installed) |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 70 |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software and Protocols | |
| Software | SDK development kit, and associated demo/calibration software |
| Operating Systems | Windows7/10 32/64bit；PC Linux 32/64bit |
| Protocols/Standards | GigE Vision V1.2，GenICam |
| Compatible Software | NI MAX，Halcon，VisionPro，MV Viewer，MVS |
| Certifications | CE，RoHS |
Key Features
- Second-generation industrial camera, low power consumption
- A new generation of appearance structure design, higher Installation accuracy
- noise reduction, super palette, User-defined key and other rich functions.
- GigE interface, maximum transmission distance up to 100m (without relay)
- Support GigE Vision V1.2, GeniCam standard, seamlessly connect to third-party software
- Comply with CE, FCC, RoHS
- Dimension: 29 mm × 29 mm × 31.5 mm

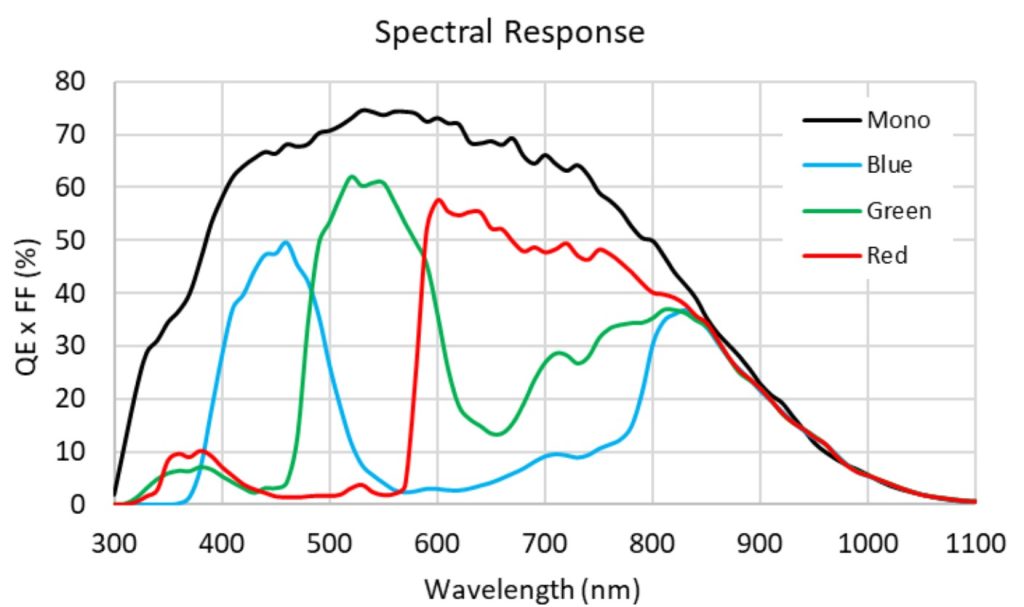

Spectral response
Dimension（Unit: mm）
