M2A1280-93GM
M2A-G series is a new series of products upgraded on the basis of the structure of the first-generation MIA-G product series of ZDS, which further enhances the compatibility of the products. M2A-G series cameras are developed based on GigE Vision and are compatible with third-party machine vision development software. It is especially suitable for applications that have strict requirements on stability, compatibility, volume and cost performance.
| wdt_ID | Parameter | Value |
|---|---|---|
| 33 | Performance Parameters | |
| 34 | Sensor Type | CMOS Global Shutter |
| 35 | Resolution | 1280×1024 |
| 36 | Optical Size | 1/2.7", 6.5mm diagonal |
| 37 | Pixel Size | 4μm×4μm |
| 38 | Mono/Color | Mono |
| 39 | Max Frame Rate | 93FPS@1280×1024 MONO8 |
| 40 | Dynamic Range | 68.5 dB |
| 41 | Gain | 1x～15.5x；Step 0.2x |
| 42 | Exposure Time | 3μs~10sec，Step 1μs |
| 43 | Exposure mode | Support Auto Exposure/Manual Exposure/Single Exposure |
| 44 | Pixel Formats | Mono8 /Mono16 |
| 45 | Pixel Merge | 2×2 Sum2,2×2 Binning |
| 46 | Trigger Mode | Hardware Trigger, Software Trigger |
| 47 | Image Cache | 1Gbit |
| 48 | ISP | Contrast, LUT, Gamma, Noise Reduction, Horizontal and Vertical Mirroring support |
| 49 | Electrical Characteristics | |
| 50 | Data Interface | 1000Mbps network port, RJ45 connector with fixing screw holes |
| 51 | I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| 52 | Power supply | POE power supply or DC 12-24V (±10%) power supply |
| 53 | Typical Power Consumption | 2.2W@24VDC |
| 54 | Structure and environmental parameters | |
| 55 | Lens Interface | C-Mount, optical back focus 17.5mm |
| 56 | IO and Power Interface | 6 pole industrial circular connector |
| 57 | Filter | Full-wavelength lens intensifier |
| 58 | Dimension | 29mm x 29mm x 31.5mm (lens connector not included) |
| 59 | Weight | Approx. 51.6g |
| 60 | IP Protection Rating | IP40 (with lens and cables properly installed) |
| 61 | Operating Temperature | -10℃~ 50℃ |
| 62 | Storage Temperature | -20℃~ 70 |
| 63 | Humidity | 5% ~ 90%RH (non-condensing) |
| 64 | Software and Protocols | |
| 65 | Software | SDK development kit, and associated demo/calibration software |
| 66 | Operating Systems | Windows7/10 32/64bit；PC Linux 32/64bit |
| 67 | Protocols/Standards | GigE Vision V1.2，GenICam |
| 68 | Compatible Software | NI MAX，Halcon，VisionPro，MV Viewer，MVS |
| 69 | Certifications | CE，RoHS |
Key Features
- Second-generation industrial camera, low power consumption
- A new generation of appearance structure design, higher Installation accuracy
- noise reduction, super palette, User-defined key and other rich functions.
- GigE interface, maximum transmission distance up to 100m (without relay)
- Support GigE Vision V1.2, GeniCam standard, seamlessly connect to third-party software
- Comply with CE, FCC, RoHS
- Dimension: 29 mm × 29 mm × 31.5 mm

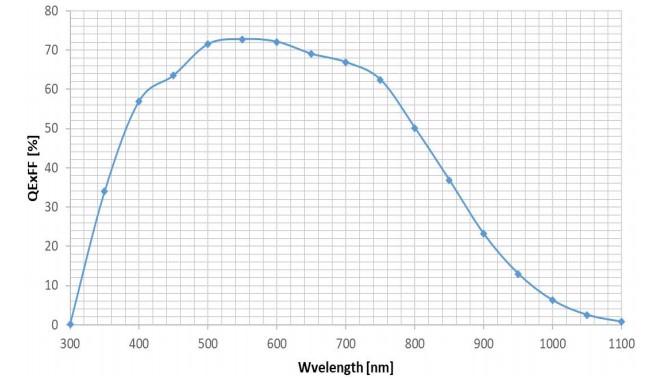

Spectral response
Dimension（Unit: mm）
