MDA5120-17UC
MDA true color series, suitable for scenes with high color requirements Large optical sensor, high pixel chip design Medical, microscopic and other applications
Key Features
- Large target surface, high pixel, high sensitivity, ultra-low noise
- Transparent, true color reproduction
- Support multiple cameras working simultaneously
- Support Direct Show, Twain interface
- CE, FCC, RoHS certification
- Support Windows XP SP3 or above, Linux 32/64 bit operating system
- Dimension: 48mmx44mmx39mm
| Parameter | Value |
|---|---|
| Resolution | 5120×5120 |
| Optical Size | 1.1″ |
| Shutter | Global |
| Pixel Size | 2.5um |
| Max frame rate | 17FPS |
| Mono/Color | Color |
| Exposure Mode | Manual exposure, Auto-exposure |
| Bit Depth | 12bit |
| Trigger Mode | Software Trigger / Hardware Trigger |
| Spectral Response | 390nm-690nm |
| Exposure Time | 22us～11s679ms335us |
| Gain Range | Gain: 1-5x, step: 0.5x |
| Pixel Formats | RAW8、RAW12、RAW16、MONO8、MONO16、BGR24 |
| Power Supply | USB 5V |
| Power Consumption | 5W |
| Multiple Cameras Application | Support |
| Data Interface | USB3.0 |
| Dimension | 56mmx56mmx36.2mm |
| Working Temperature | -10℃- 50℃ |
| Working Humidity | 10% ~ 90%RH (no condensation) |
| Weight | 208g |
| Lens Mount | C |
| IP Rating | IP30 |
| Compatibility | USB3.0 Vision, GenlCam, HALCON, LabView, OpenCV |
| Conformity | CE, FCC, RoHS |

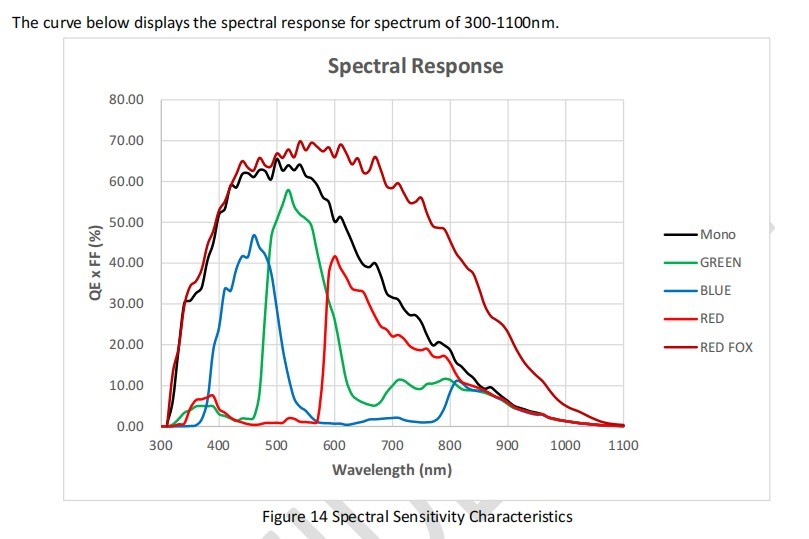

Spectral Response

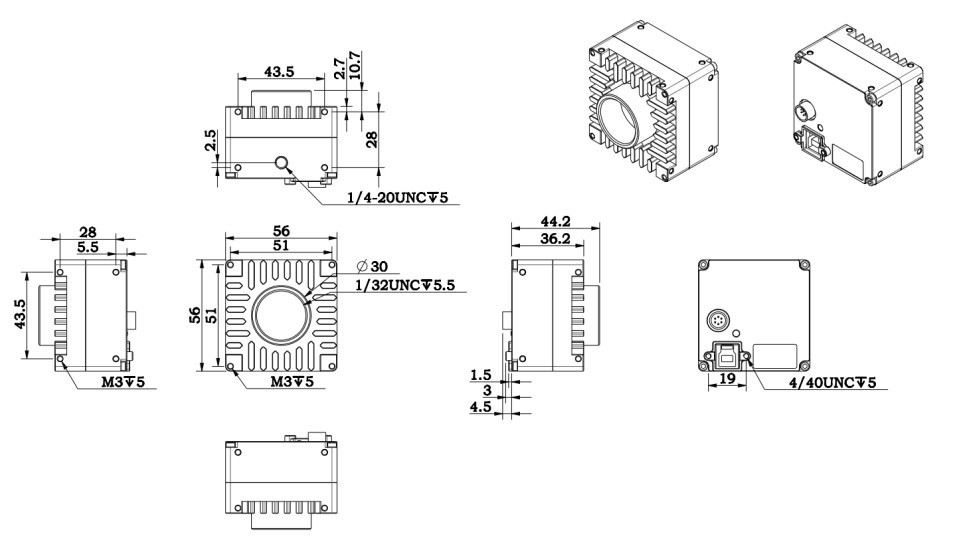

Dimension Drawing
